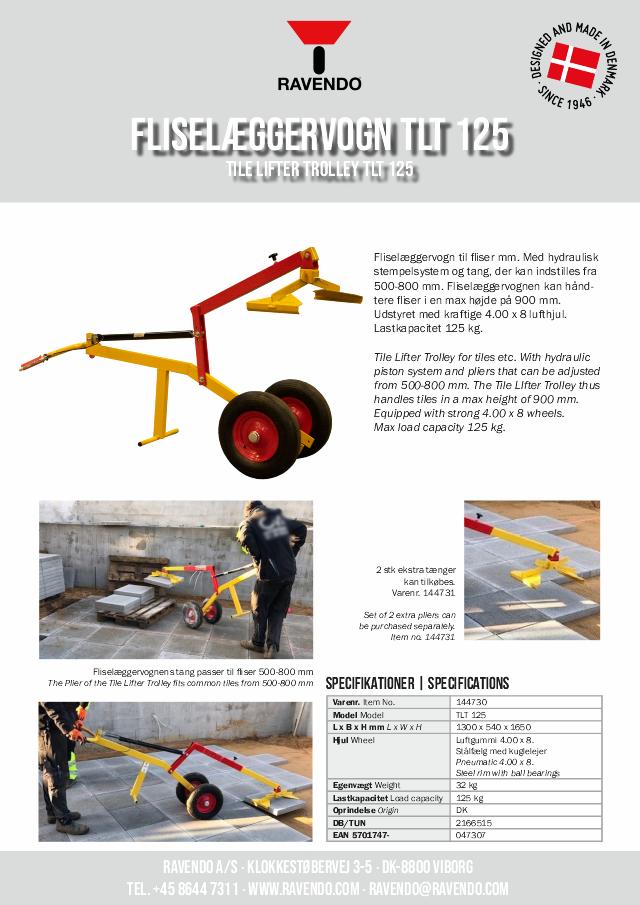

Tile Lifter Trolley TLT 125
DB/TUN nummer: 2166515
EAN no.: 5701747047307
The Tile Lifter Trolley TLT 125 is designed to safely lift and transport tiles with a load capacity of up to 125 kg. Equipped with a hydraulic piston system and an adjustable solid gripper (400–800 mm), it handles most common tiles between 500–800 mm and can lift them to heights of up to 1 meter. The trolley features powerful 4.00 × 8 pneumatic wheels for smooth movement across uneven surfaces.
Specifications
- DB/TUN Number
- 2166515
- Recommended use
- PRO
- Warranty
- 5 år
- Country of origin
- Denmark
- Total W (mm)
- 540
- Total H (mm)
- 1650
- Total L (mm)
- 1300
- Lifting height max (mm)
- 1000
- Load capacity (kg)
- 125
- Dead weight (kg)
- 32
- Wheel Type
- Pneumatic
- Wheel Size
- 4.00 x 8
- Rim
- Steel
- Bearing
- Ball bearings
- Hub L (mm)
- 85
- Hub Ø (mm)
- 20/25
- Material
- Steel
- Colour
- Yellow , Red
- Coating
- Powercoated
- Per unit
- Reg. EU-pallet
- Quantity per pallet
- 4
- Assembly
- Mounted
The Tile Lifter Trolley TLT 125 is a robust and versatile solution for lifting, transporting, and positioning tiles in workshops, construction sites, and production environments. Its hydraulic piston system allows for precise lifting, while the solid gripper, adjustable from 400–800 mm, accommodates most common tiles ranging from 500–800 mm.
This trolley can lift tiles to a height of up to 1 meter, improving ergonomics and reducing manual handling effort. Its 4.00 × 8 pneumatic wheels provide smooth and stable movement across both indoor and outdoor surfaces, ensuring efficient transport even on uneven floors.
With a maximum load capacity of 125 kg, the TLT 125 combines strength, stability, and ease of use, making it a reliable tool for professionals handling tiles in demanding work environments.
