Sign Base Trolley SBT 125
EAN no.:

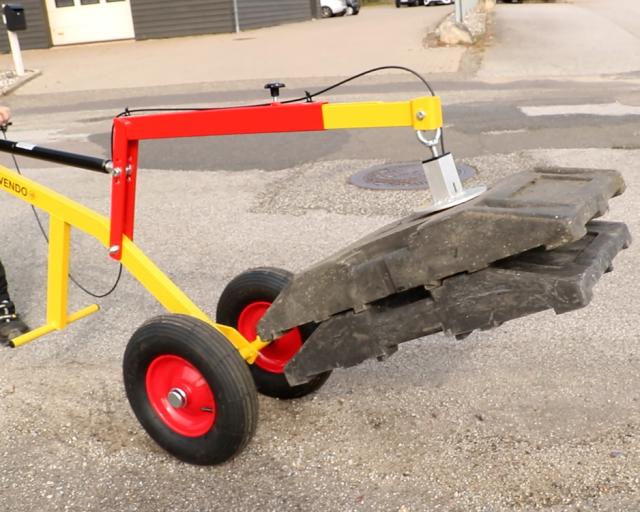

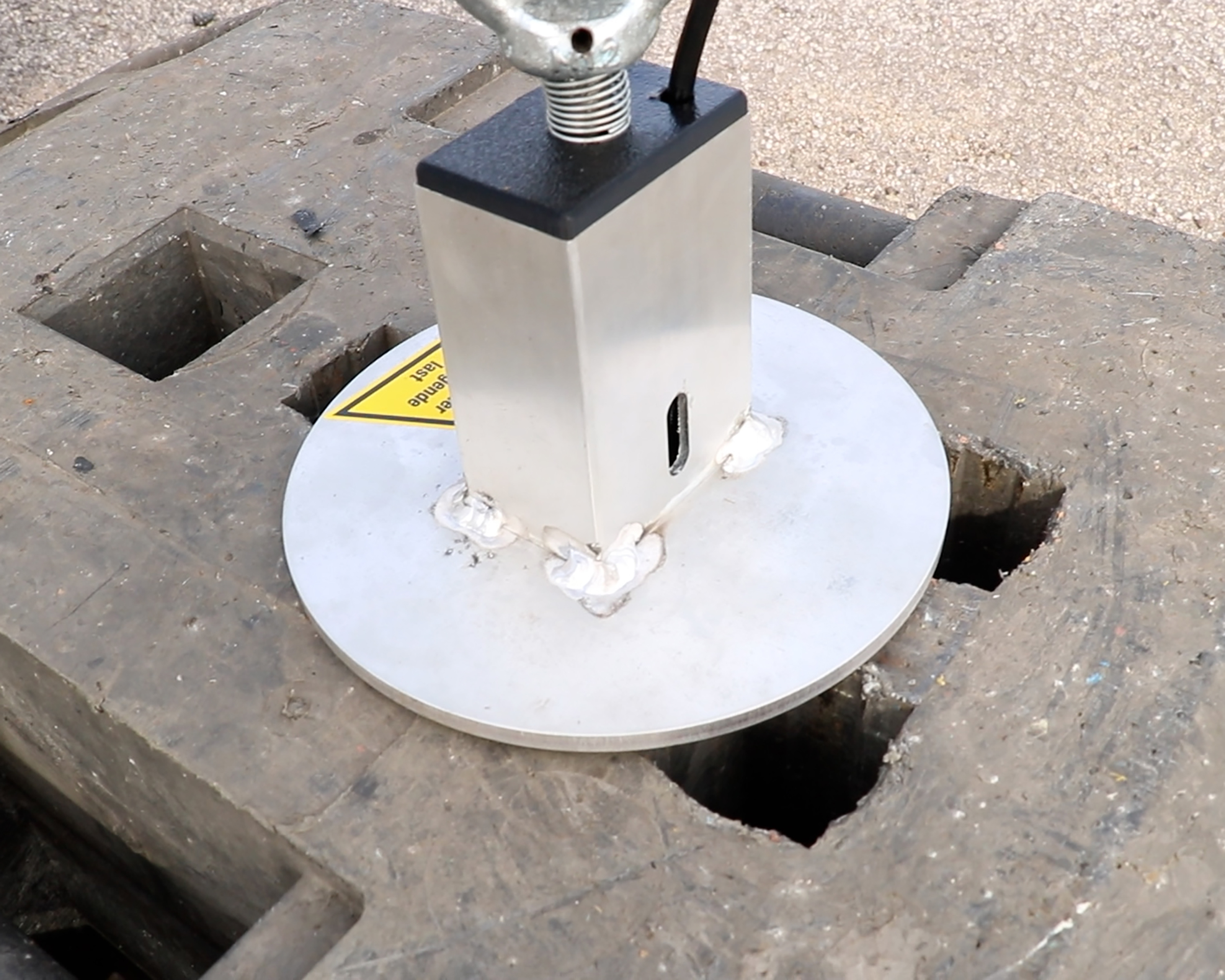

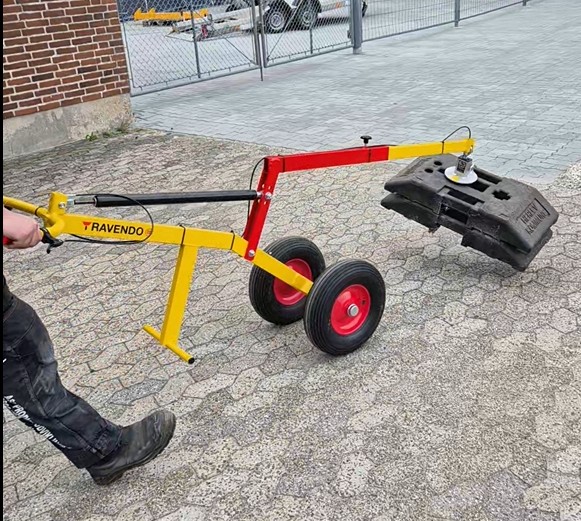

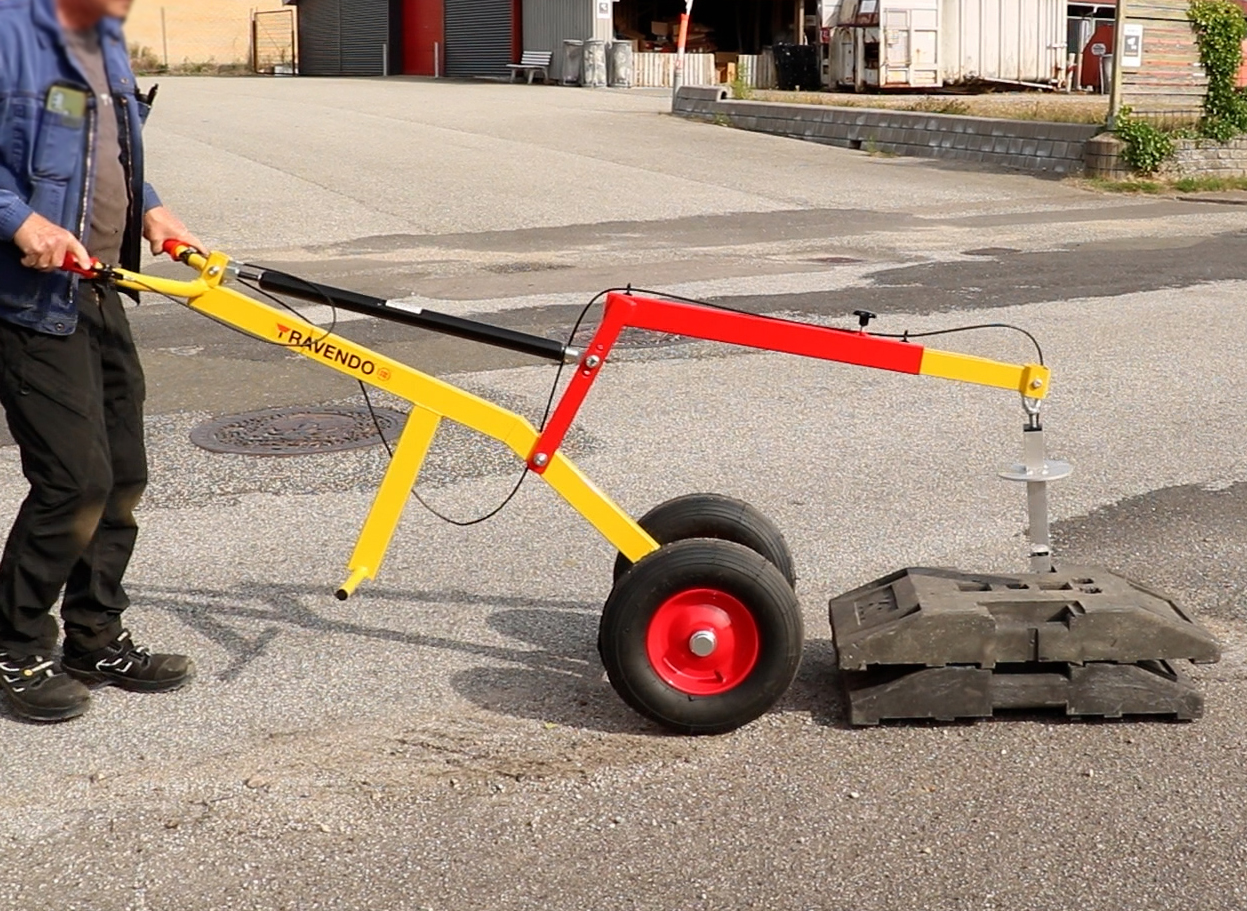

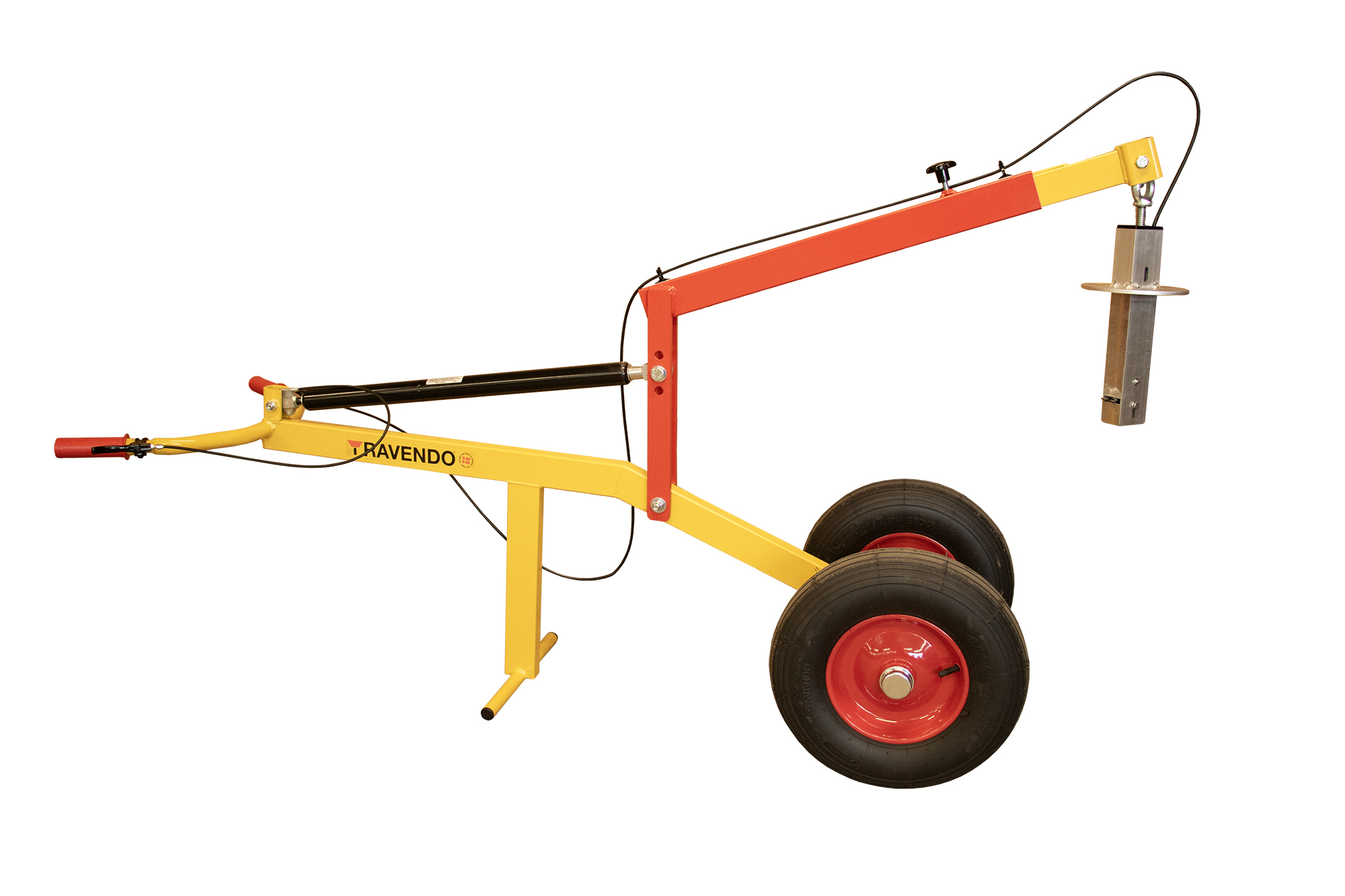

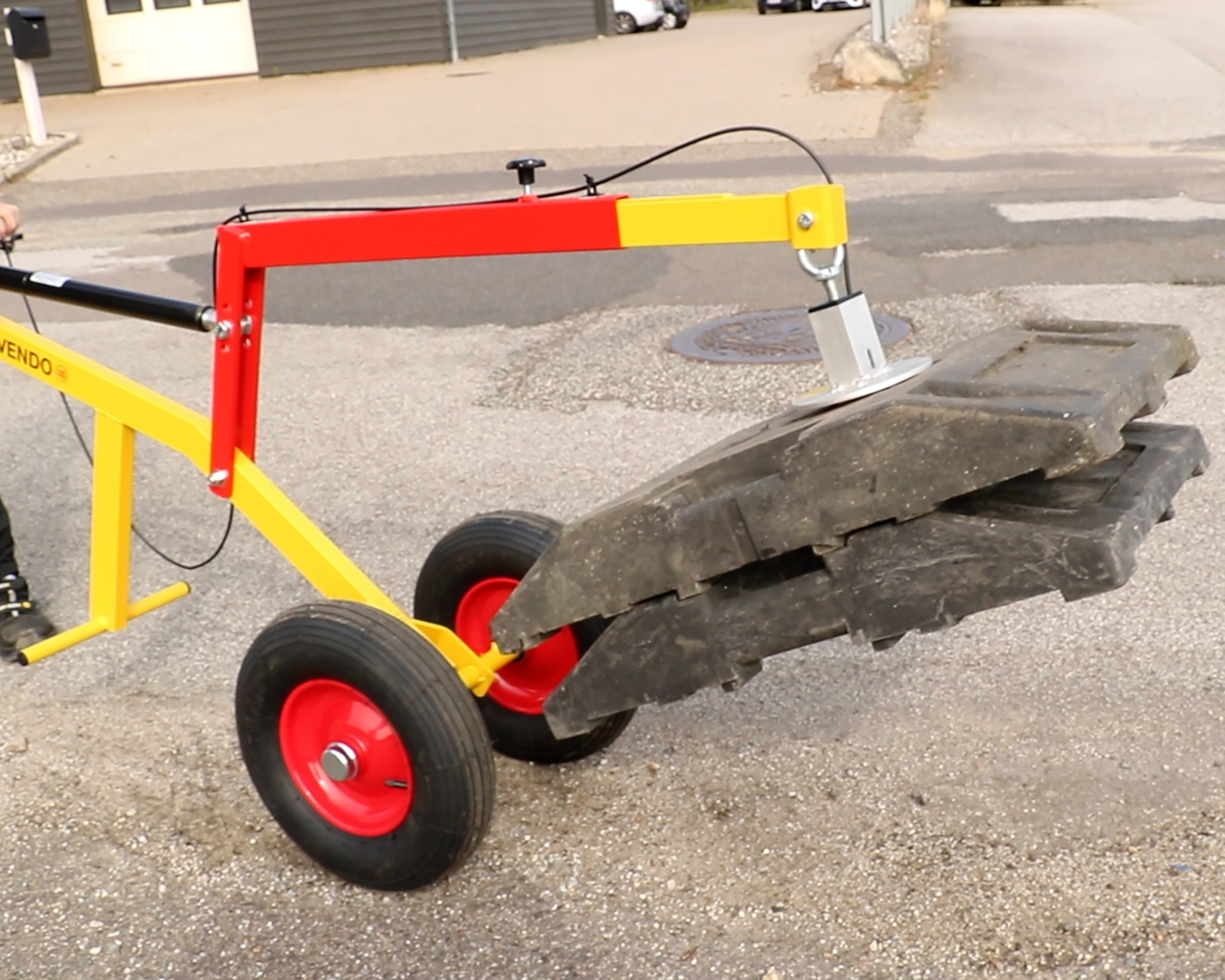

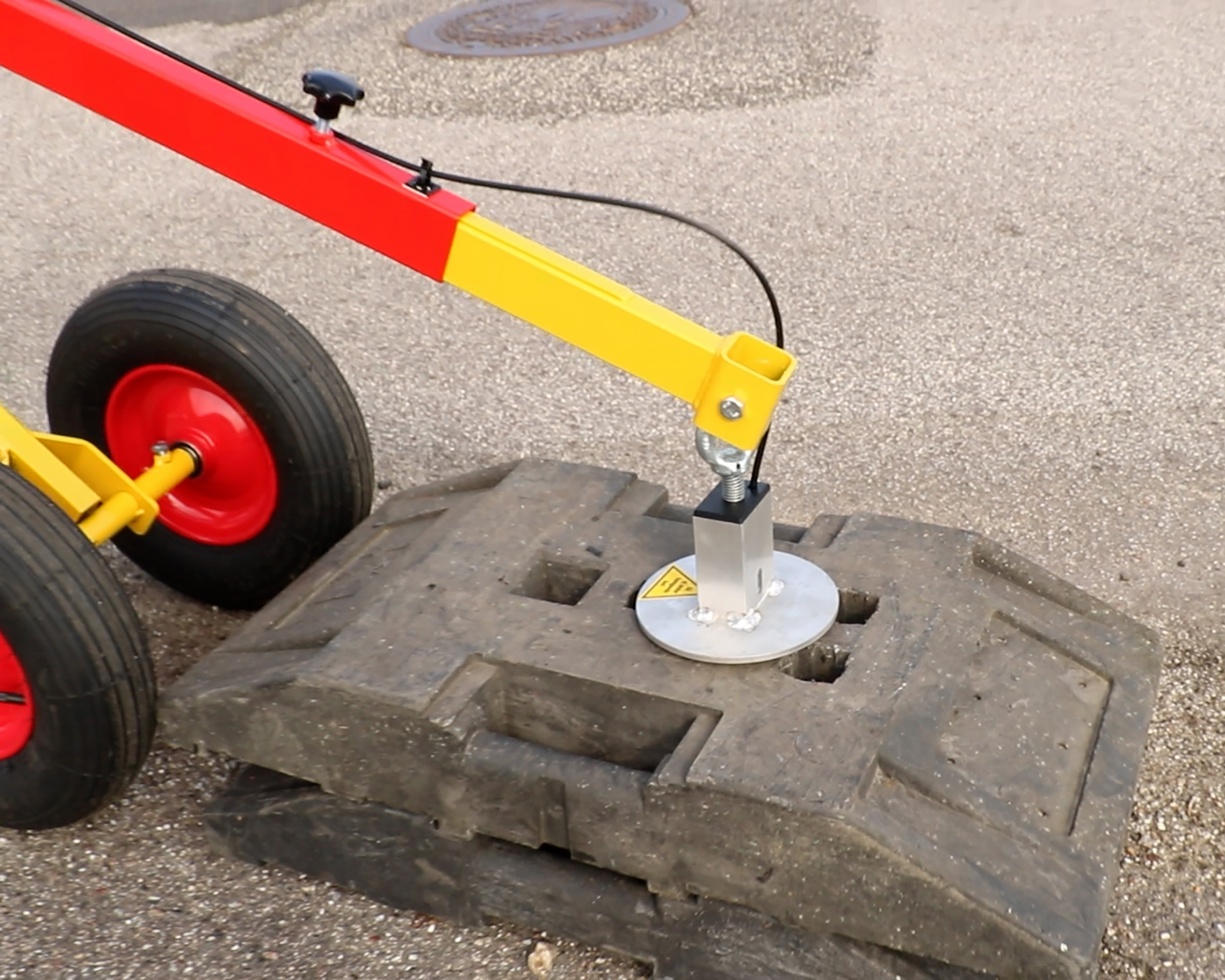

Ravendo’s Sign Base Trolley is equipped with a hydraulic piston system and a heavy-duty lifting unit capable of lifting up to 125 kg. The Sign Base Trolley can therefore handle two sign bases at a time and raise them to a height of up to 1 m. It is fitted with strong 4.00 x 8 pneumatic wheels and two handles, which control the piston system and lifting height, and lifting unit respectively. Maximum load capacity: 125 kg.
Specifications
- Recommended use
- PRO
- Warranty
- 5 år
- Country of origin
- Denmark
- Tags
- NYHED
- W (mm)
- 540
- H (mm)
- 1650
- L (mm)
- 1300
- Lifting height max (mm)
- 1000
- Load capacity (kg)
- 125
- Dead weight (kg)
- 35
- Quantity per pallet
- 4
- Wheel Type
- Pneumatic
- Wheel Size
- 4.00 x 8
- Rim
- Steel
- Bearing
- Ball bearings
- Hub L (mm)
- 85
- Material
- Steel
- Colour
- Yellow , Red
- Coating
- Powercoated
- Per unit
- Reg. EU-pallet
- Quantity per pallet
- 4
- Assembly
- Mounted
Description
Ravendo’s Sign Base Trolley is equipped with a hydraulic piston system and a heavy-duty lifting unit capable of lifting up to 125 kg. The Sign Base Trolley can therefore handle two sign bases at a time and raise them to a height of up to 1 m. It is fitted with strong 4.00 x 8 pneumatic wheels and two handles, which control the piston system and lifting height, and lifting unit respectively. Maximum load capacity: 125 kg.
