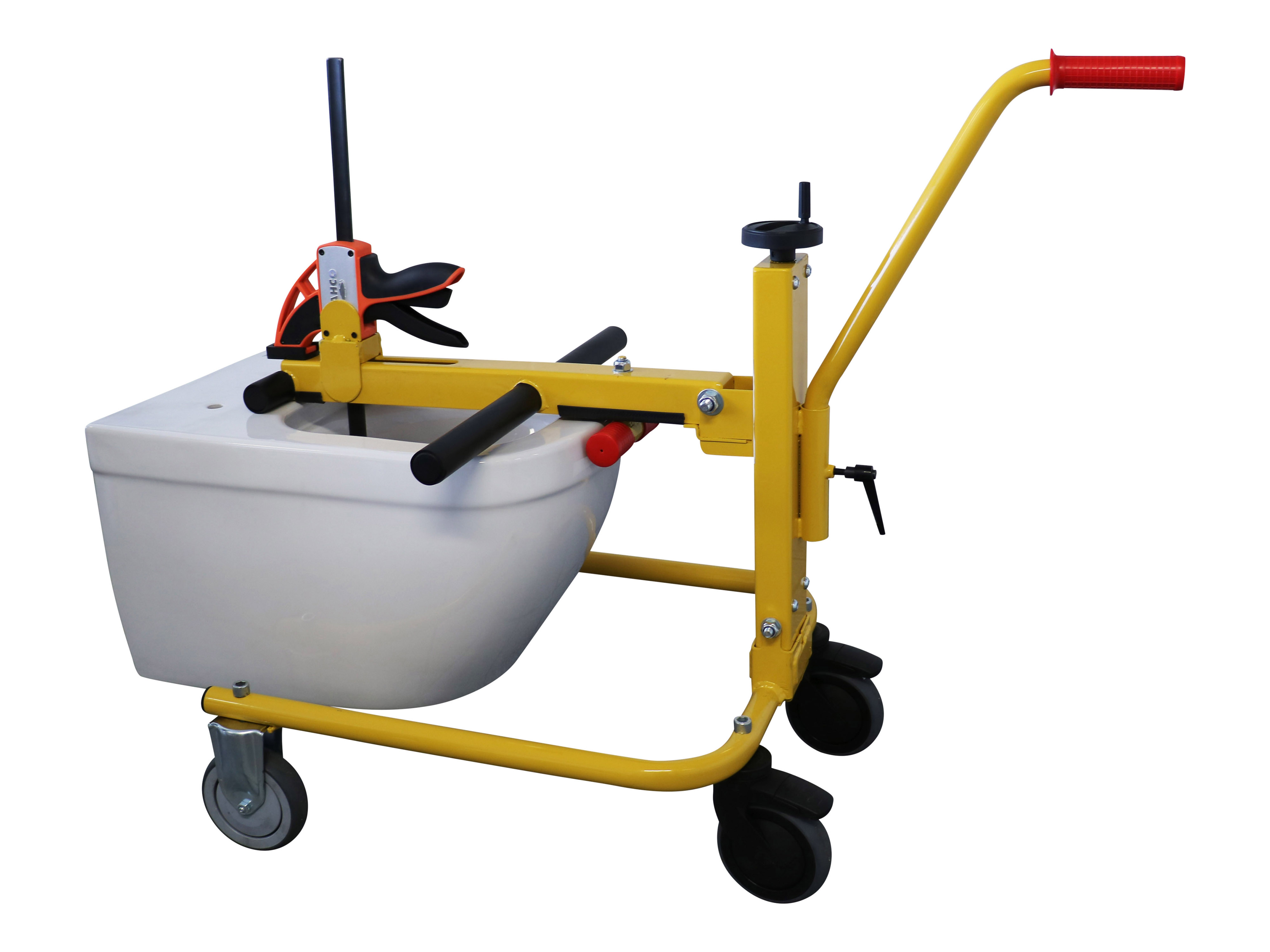

Mounting wagon WM

Item no.: 142700
DB/TUN nummer: 2111313
EAN no.: 5701747427000

With the Ravendo Mounting Wagon WM, you are assured of an easy and efficient installation of wall-mounted troughs, which can often be a difficult task, which can end up in a damaged floor, back or trough. Ravendo Mounting Wagon WM has been developed in collaboration with the plumbing industry with the simple purpose of facilitating the installation of wall-mounted troughs. - Clamping handle with pump function - Powerful hook that ensures solid hold in the basin - Smart raising and lowering system allows for fine tuning - High quality Ignition Wheel for a stable transport - Brakes on rear wheels - Foldable for easy transport

Specifications

DB/TUN Number
2111313
Warranty
5 år
Country of origin
Denmark

W (mm)
520
H (mm)
670
L (mm)
633
Load capacity (kg)
75
Dead weight (kg)
8

Wheel Type
Tente
Wheel Size
Ø125

Material
Steel
Pipe (mm)
30
Colour
Yellow
Coating
Powercoated

Quantity per pallet
10
Assembly
Unmounted

Download materials

  Name Download File type
142700_2024.mp4
142700.jpg 464 KB
.jpg

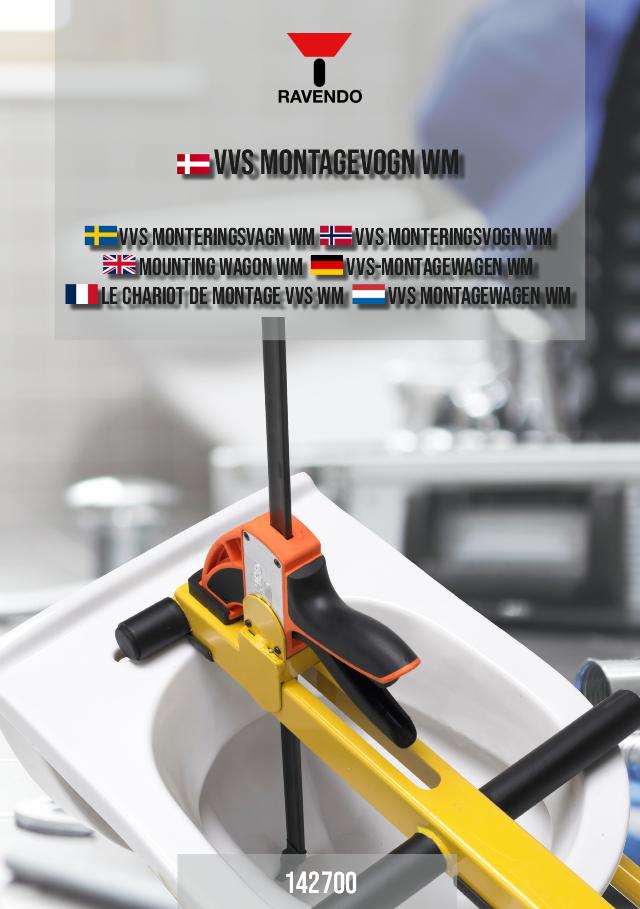

142700-manual-DK.pdf 1984 KB
.pdf
