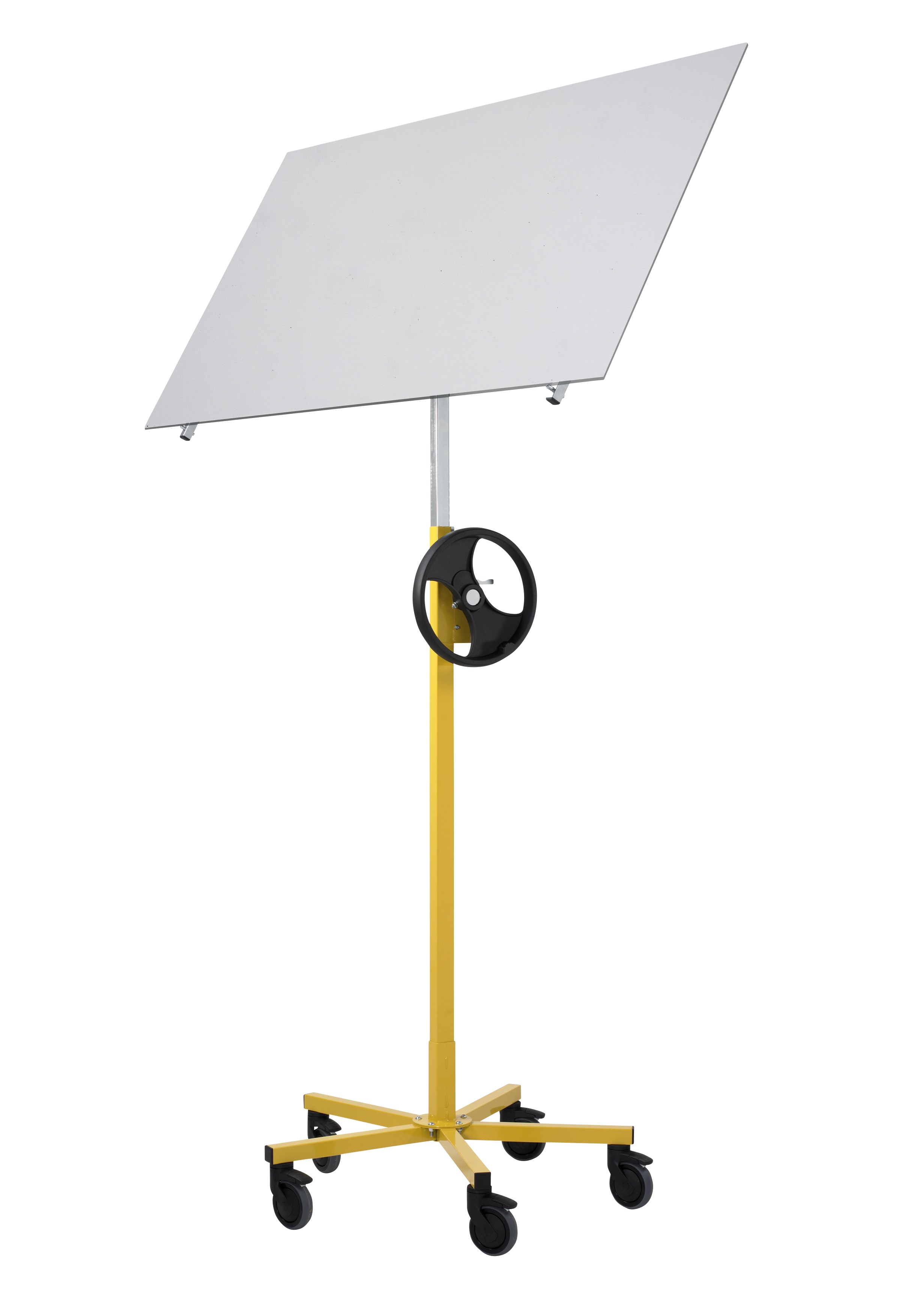

Board Lift PBT70
Item no.: 144695
DB/TUN nummer: 2096250
EAN no.: 5701747046959
DB/TUN nummer: 2096250
EAN no.: 5701747046959
Stable board lift for mounting panels. Stable construction and high-quality Tente-wheels that ables you to work on stable ground. Weatherproof UV-coating. The distinctive yellow color of Ravendo A/S is enviromentaly safe and UV proof. RAL 1004 powder coating. The top can be extented in width from 88 cm to 104 cm. And easily adjusted with a bolt. The 5 wheel drive gives a more stable turning radius Adjustable height: 1860 – 3000 mm High quality Tente-wheels: non-slip, Silent and with brakes. Capacity: 70kg
Specifications
- DB/TUN Number
- 2096250
- W (mm)
- 880
- H (mm)
- 1820
- Lifting height max (mm)
- 3000
- Lifting height min (mm)
- 1860
- Load capacity (kg)
- 70
- Dead weight (kg)
- 24
- Wheel Type
- Tente
- Wheel Size
- Ø125
- Material
- Steel
- Colour
- Black , Yellow
- Coating
- Galvanized , Powercoated
- Quantity per pallet
- 3
- Assembly
- Unmounted
Download materials
Name | Download | File type | |
---|---|---|---|
![]() |
144695.jpg | 296 KB | .jpg |
|

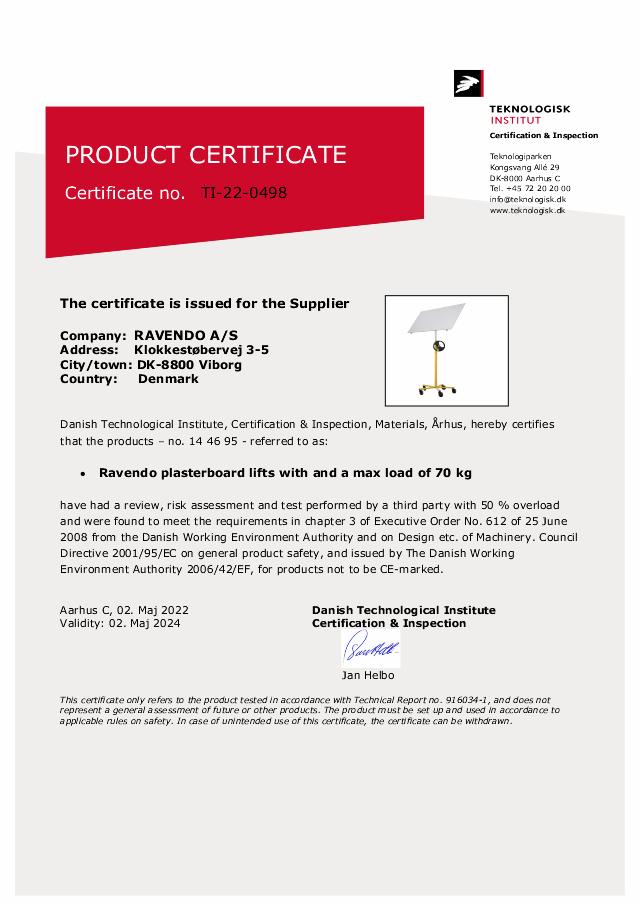

144695-CE-DK.pdf | 683 KB |
