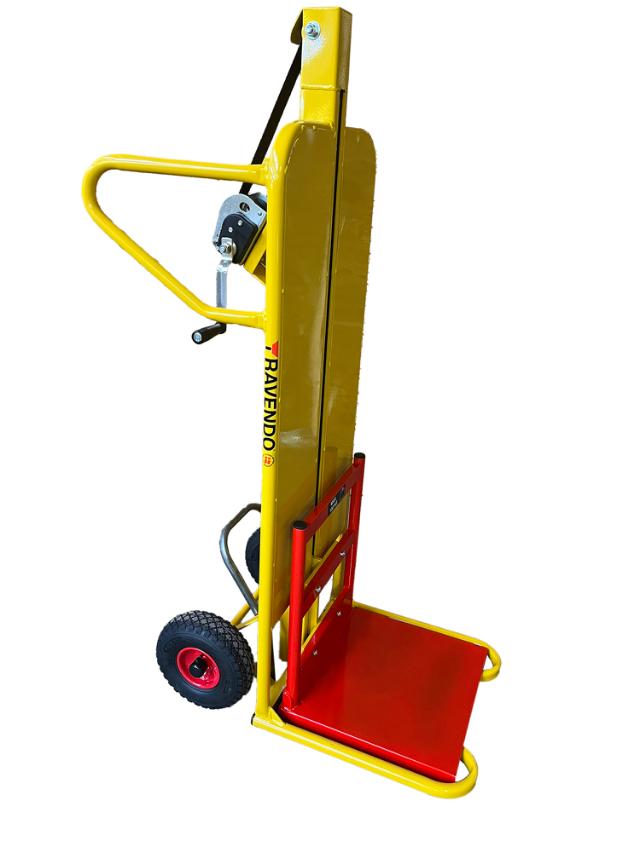

Lifting Sack Truck LST 100 L
Item no.: 147130
DB/TUN nummer: 1703042
EAN no.: 5701747071302
DB/TUN nummer: 1703042
EAN no.: 5701747071302
Easy-Tip
Step up on the “lever” and use your body weight to reduce
the amount of energy to be used to tilt the hand truck
Ergonomic handles
ensures the most advantageous working position -
forget about muscle and joint pain.
Pneumatic wheels
3.00 x 4 w/ rollerbearing and a powerful hose of Butyle
ensures good driving comfort and a long life.
Weather resistant UV lacquer
Ravendo A/S characteristic yellow color is an environmentally friendly
UV resistant RAL 1004 Powder coating.

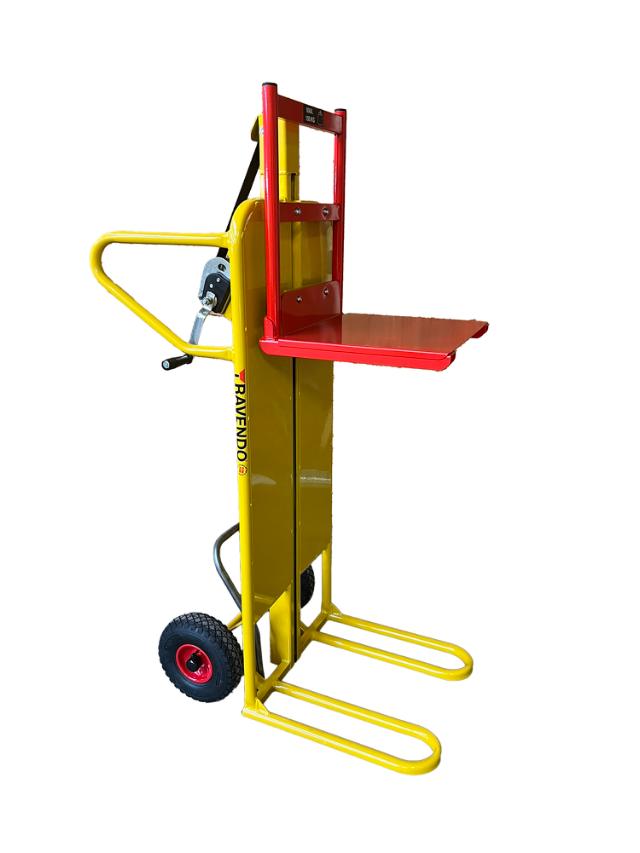

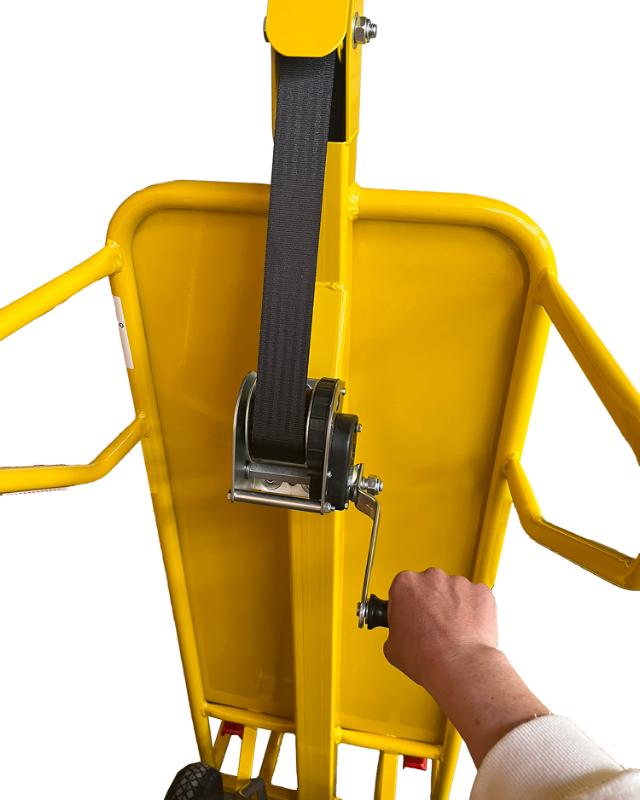

Raise/lowersystem
Smart and easy raise/lower system.
Can lift up to 100 kg to a maximum of 1 meter.

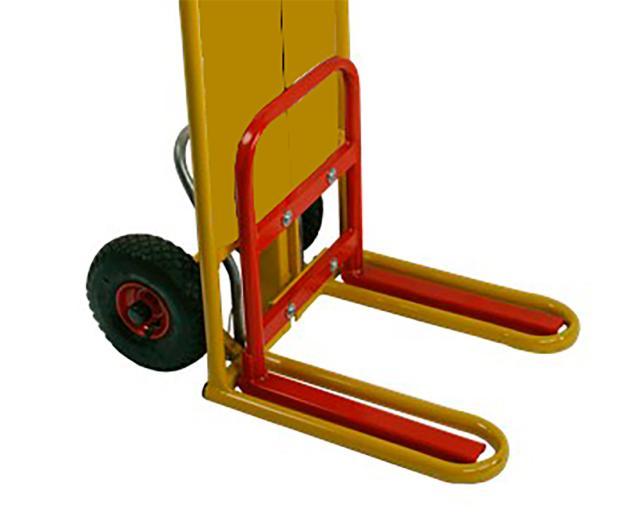

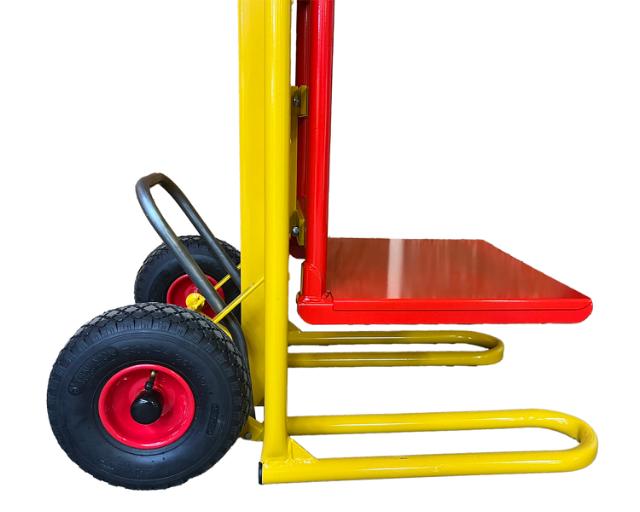

The support plate
Can easily be removed and another may be applied
to fit precisely your needs.
L x B = 39 x 43 cm
Specifications
- DB/TUN Number
- 1703042
- Warranty
- 5 år
- Country of origin
- Denmark
- W (mm)
- 540
- H (mm)
- 1500
- L (mm)
- 900
- Support plate B (mm)
- 520
- Support plate L (mm)
- 440
- Lifting height max (mm)
- 1000
- Load capacity (kg)
- 100
- Dead weight (kg)
- 43.6
- Wheel Type
- Pneumatic
- Wheel Size
- 3.00 x 4/4
- Rim
- Steel
- Bearing
- Roller bearings
- Hub Ø (mm)
- 20
- Hub L (mm)
- 75
- Material
- Steel
- Colour
- Yellow , Red
- Coating
- Powercoated
- Quantity per pallet
- 4
- Assembly
- Mounted
Download materials
Name | Download | File type | |
---|---|---|---|
|
147130.jpg | 1860 KB | .jpg |
|

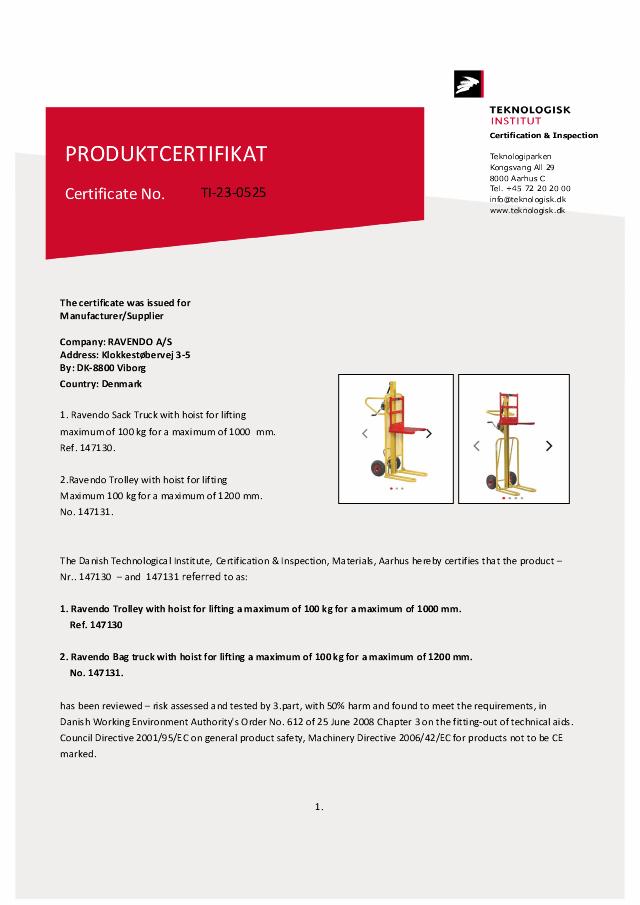

147130-CE-DK.pdf | 542 KB |
