Alu-Pro 2500 CLS M SR TIP

Item no.: 145685
DB/TUN nummer: 5841469
EAN no.: 5701747056859

Alu-Pro 2500 CLS M SR TIP is the top model in sack trucks and is equipped with standard support plate and sliding rails. The handles can be adjusted from 1170-1540 mm, allowing them to be set to the optimal working height and position. Ergonomic handle grips Angled to provide optimal hand and wrist positions during tilting and parking. Strains on hand, wrist, elbow and shoulder are significantly reduced. Sliding rails For smooth sliding over steps etc. EasyTip Greatly reduces the effort required to raise or lower heavy loads. Minimizes strain on arms and back.

Specifications

DB/TUN Number
5841469
Recommended use
PRO
Warranty
5 år
Country of origin
China

W (mm)
500
H (mm)
1170
L (mm)
930
Support plate B (mm)
330
Support plate L (mm)
335
Load capacity (kg)
250
Dead weight (kg)
15.4

Wheel Type
Pneumatic
Wheel Size
3.00 x 4/4
Rim
Plastic
Bearing
Roller bearings
Hub Ø (mm)
20
Hub L (mm)
75

Material
Alu
Colour
Black , Yellow , Silver
Handle
Plastic, grey

Quantity per pallet
8
Assembly
Mounted

Download materials

  Name Download File type

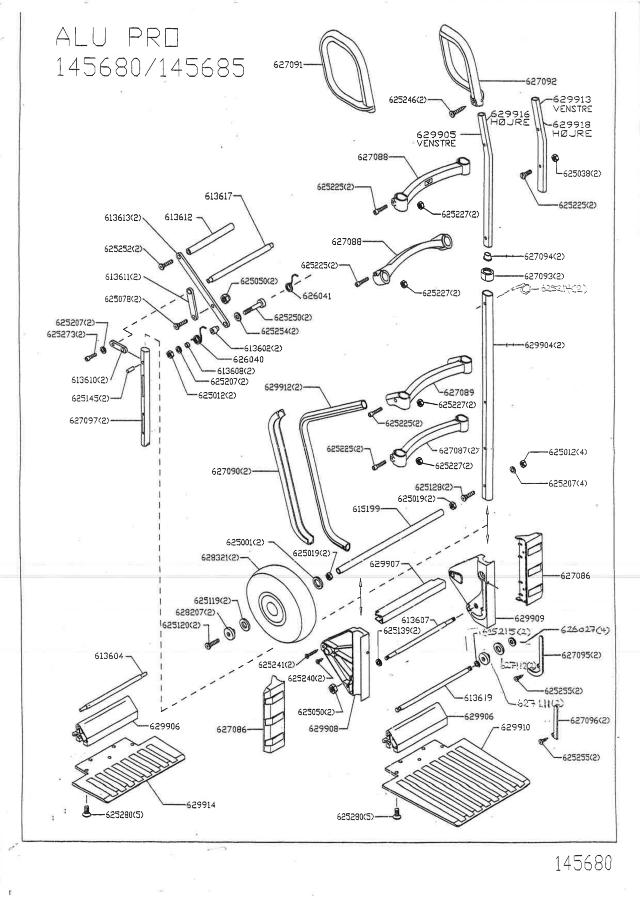

145685.jpg 1168 KB
.jpg
145685.pdf 107 KB
.pdf
