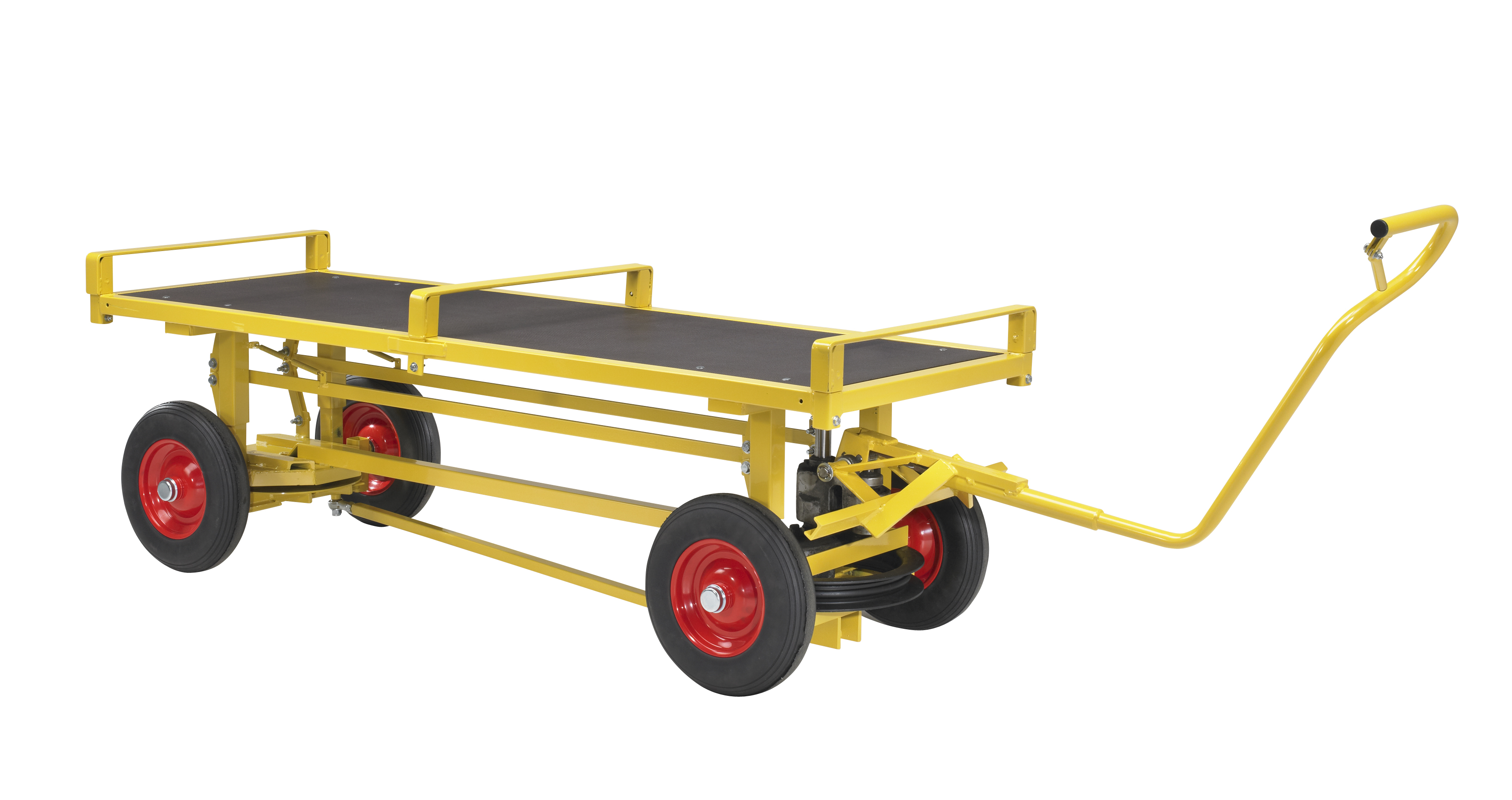

Wagon for transportation of plaster PBT 2200
Item no.: 144220
DB/TUN nummer: 1763463
EAN no.: 5701747042203
DB/TUN nummer: 1763463
EAN no.: 5701747042203

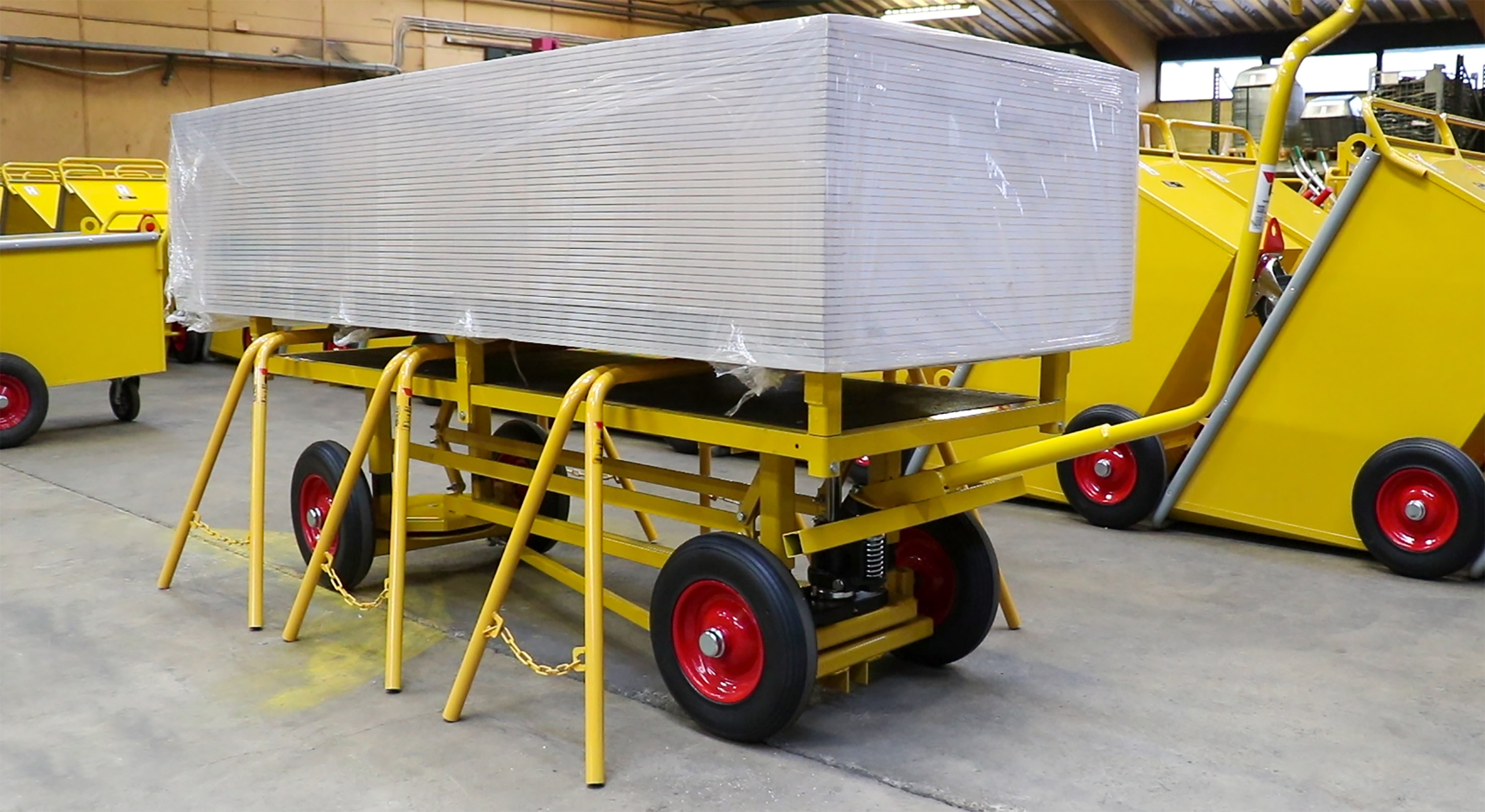

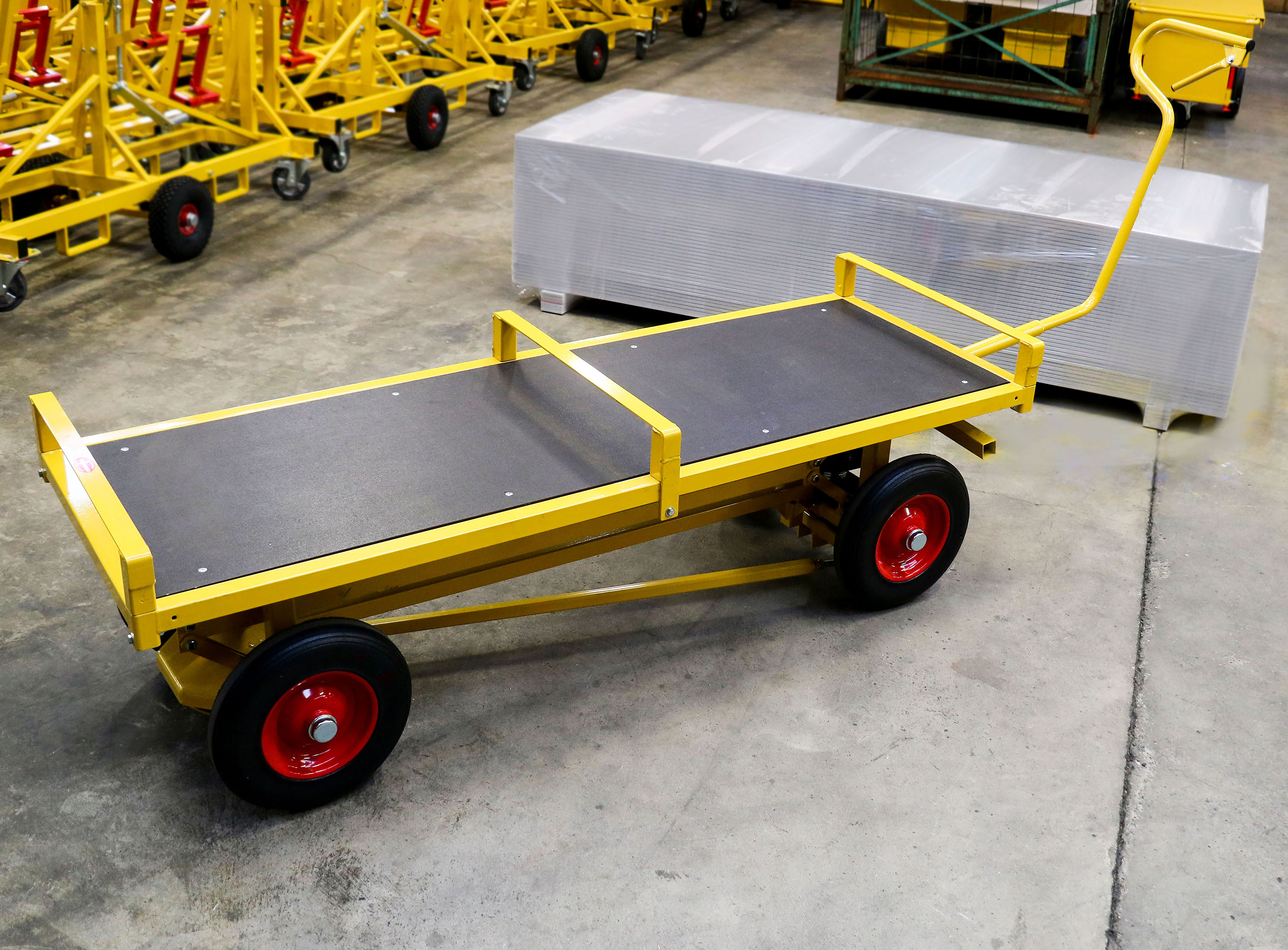

Heavy steel construction lifts up to 1200 kg. The 4-wheel-driven design provides a turning radius of 1.5 m and can be quickly halted by pressing down on the drawbar. 16 "4.00 x 8 solid wheels with steel rim and ball bearings.
Specifications
- DB/TUN Number
- 1763463
- Recommended use
- PRO
- Warranty
- 5 år
- Country of origin
- Denmark
- W (mm)
- 700
- H (mm)
- 590
- L (mm)
- 2200
- Support Surface B (mm)
- 700
- Support Surface L (mm)
- 2200
- Load capacity (kg)
- 1200
- Dead weight (kg)
- 180
- Wheel Type
- Solid
- Wheel Size
- 4.00 x 8
- Rim
- Steel
- Bearing
- Ball bearings
- Hub Ø (mm)
- 20
- Hub L (mm)
- 85
- Material
- Steel , Wood
- Colour
- Yellow
- Coating
- Powercoated
- Handle
- Hanger handle
- Assembly
- Mounted
Download materials
| Name | Download | File type | |
|---|---|---|---|
|
144220.jpg | 1312 KB | .jpg |
|
144220-miljø-1.jpg | 934 KB | .jpg |
|
144220-miljø-2.jpg | 657 KB | .jpg |
|

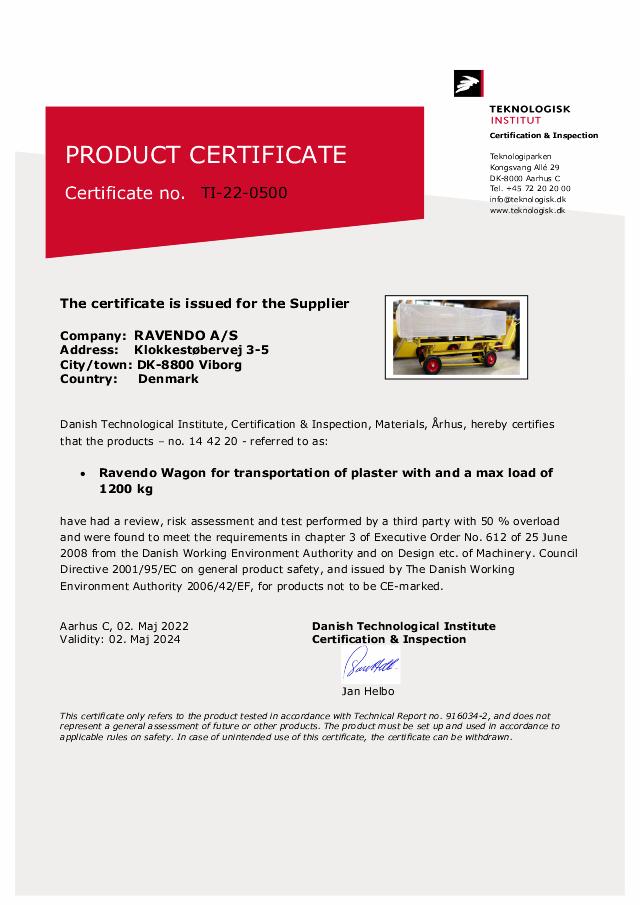

144220-CE-DK.pdf | 814 KB |
